The Scottish Shelf Waters Reanalysis Service (SSW-RS) is a downstream service of the Copernicus Marine Environment Monitoring Service. The Scottish Shelf Waters Reanalysis Service provides hydrodynamic model outputs from 1993 to 2018 for the Scottish Continental Shelf and adjacent waters on an unstructured model mesh.

Target users include Scottish public bodies responsible for marine environmental regulation, industry and academia. The underlying model is the Scottish Shelf Model, an implementation of the Finite Volume Community Ocean Model. The Scottish Shelf Model has been developed by the National Oceanography Centre since 2012, under the guidance of Marine Scotland Science.

NOC has been responsible for the SSW-RS technical development (model setup and validation) and the 26-year run. NOC worked on the building of the boundary conditions from CMEMS data, the activation of SST data assimilation, the building of the atmospheric forcing from ERA5 and the building of the full river dataset.

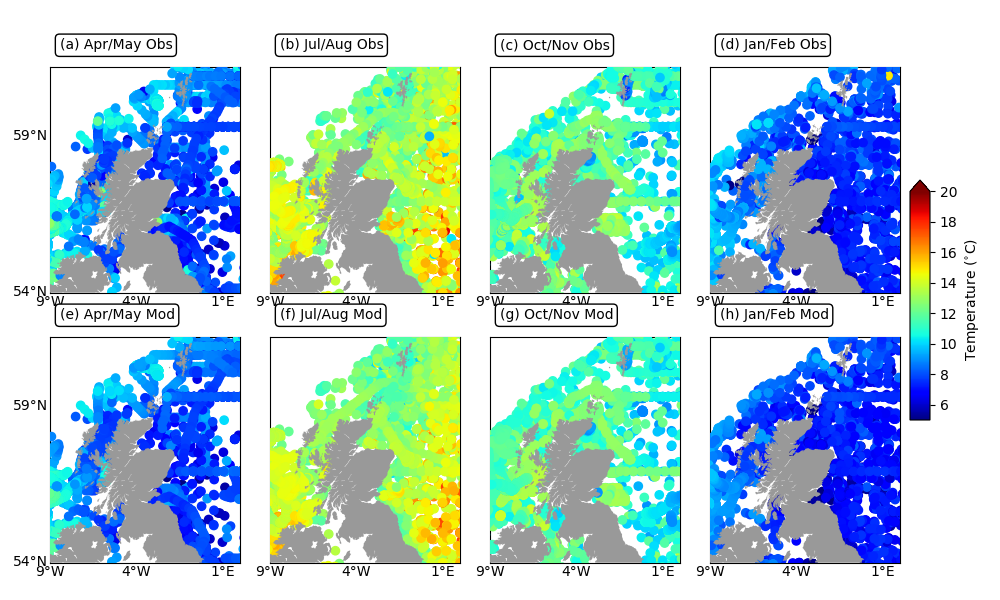

Observations: water temperature and salinity profiles

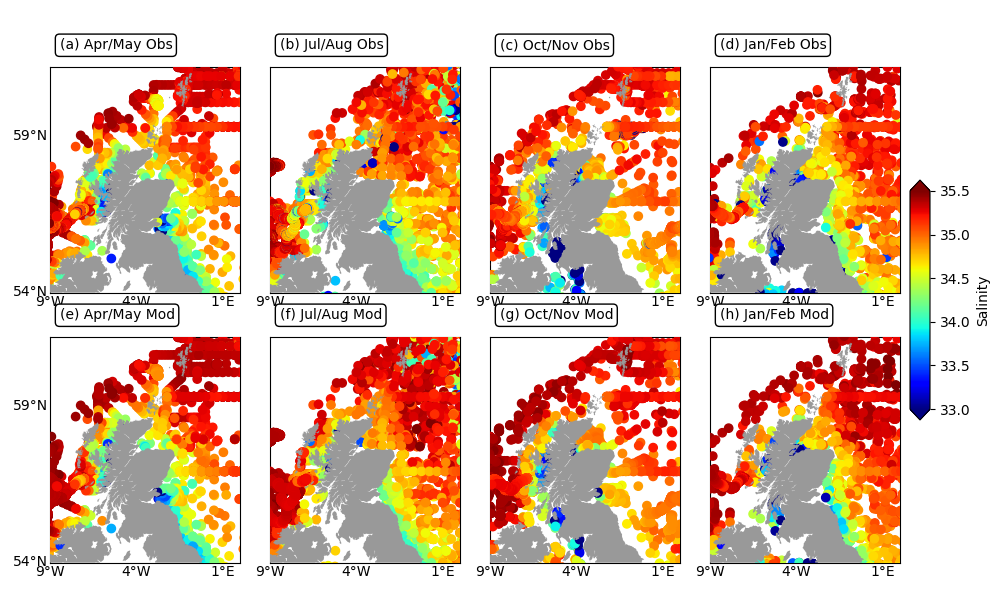

Model results: water temperature and salinity profiles


Aim

The Scottish Shelf Waters Reanalysis Service is available to anyone needing high resolution hydrodynamic and physical variables describing the Scottish marine environment. For example, the Scottish aquaculture industry is increasingly using the Scottish Shelf Model to force local hydrodynamic models and particle tracking simulations. Marine Scotland Science regularly uses these outputs to provide the evidence base needed for the regulation and management of Scottish seas including marine renewable energy, aquaculture, oil and gas and nature conservation.

The SSW-RS data are currently hosted on JASMIN, the UK’s data analysis facility for environmental science.

SSW-RS
